Edit Settings for RDP file in RDWeb

RDP has a lot of issues, one is how to get the users to use the right settings for the .RDP file they use to connect. In the past, I’ve downloaded the .rdp from RDWeb, edited it and distributed the file to end-users manually – via email or group policy to put it on their desktop, etc. That was getting old, so now, I have found a way to manage it via the Registry on the RDP connection broker.

One thing I’d like to mention before getting into the code is another registry entry : Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Terminal Server\CentralPublishedResources\PublishedFarms\{TheNameOfYourCollection}\RemoteDesktops\{YourRemoteDesktop} and the entry ShowInPortal – set that to 1 to show, 0 to hide (which 0 is the default).

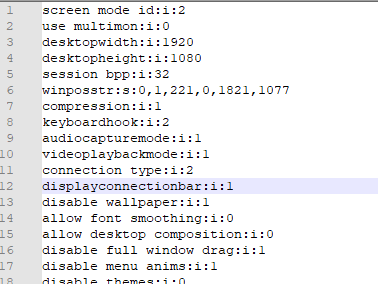

Now, on to editing the RDPFileContents – oh, you saw that in the image above? Same location in the registry. This entry has the whole RDP file contents in it – new lines and all – that is downloaded from RDWeb links. Sure, you could (carefully) edit the line in the registry – but if you accidentally take out a new line between entries, you can’t put it back in! So, the better way to do it is to download the file from RDWeb, Edit with Notepad++ (or similar, I guess plain ole notepad would work as well).

You can now edit the file – I suggest Session bpp:i:24, redirectsmartcards:i:0 (This can clear up performance issues!), and drivestoredirect:s:C:\; (note the ; after) at a minimum. See the whole list of settings at Microsoft. ( Note the Remote Desktop Services column )

Once you have the settings down – and have tested using the file you just edited – you can use the following Powershell (edit the variables, of course…) Oh, you do need to run this on your RD Web Server, if it is separate from your Gateway, Connection Broker, Host, etc., to set the .rdp file configuration in your RDWeb registry. For RemoteApps, change the RemoteDesktops to RemoteApps in the registry path.

##Powershell to create a multi-line registry entry from a file
#_RDP registry location is : Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Terminal Server\CentralPublishedResources\PublishedFarms
##_Gather the Variable Information
#_The file to import the information from
$FileToImport = "\\Path\to\your\saved\RDP-Desktop.rdp"
#_Set the entry type - for RDPFileContents, this is String.
$RegType = "string"  # For New-ItemProperty, but not used in Set-ItemProperty
#_Set the path to the Key (Folder) level of registry.
$RegPath = "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Terminal Server\Test\PublishedFarms\{YourRDPName}\RemoteDesktops\{YourRDPName}"
#_The Registry entry to Edit
$RegEntry = "RDPFileContents"
#_Import the file contents to a variable
$rContents = [system.string]::Join("`r`n",(Get-Content -Path $FileToImport))
# Assign the value
Set-ItemProperty -Path $RegPath -Name $RegEntry -Value $rContents -Force

Now your settings will be downloaded from RDWeb! No more distributing .rdp files with customized settings! With that set up and all user workstations set to not use UDP for RDP sessions, things should run smoothly!
